DELTA PLC DVP04AD-H2

Specification

Analog/Digital (4A/D) module	Voltage input	Current input
Power supply voltage	24V DC (20.4V DC ~ 28.8V DC) (-15% ~ +20%)
Analog input channel	4 channels/module
Range of analog input	+-10V	+-20mA
Range of digital conversion	+-8,000	+-4,000
Resolution	14 bits (1LSB = 2.5mV)	13 bits (1LSB = 5uA)
Input impedance	0.5Ω   or lower
Overall accuracy	+-0.5% when in full scale (25°C, 77°F)  +-1% when in full scale within the range of 0 ~ 55°C, 32 ~ 131°F
Responding time	3ms × the number of channels
Isolation	Internal circuit and analog output terminals are isolated by optical coupler.  No isolation among analog channels.
Range of absolute input	+-15V	+-32mA
Digital data format	13 significant bits out of 16 bits are available; in 2's complement
Average function	Yes. Available for setting up in CR#2 ~ CR#5; range: K1 ~ K20.
Self-diagnosis	Upper and lower bound detection/channel
Communication mode  (RS-485)	ASCII/RTU mode. Communication speed: 4,800/9,600/19,200/38,400/57,600/115,200 bps. ASCII data format: 7-bit, even bit, 1 stop bit (7, E, 1). RTU data format: 8-bit, even bit, 1 stop bit (8, E, 1). RS-485 cannot be used when connected to PLC MPU.
When connected to DVP-PLC  MPU in series	The modules are numbered from 0 to 7 automatically by their distance from MPU. No.0 is the closest to MPU and No.7 is the furthest. Maximum 8 modules are allowed to connect to MPU and will not occupy any digital I/O points.
Max. rated power consumption	24V DC (20.4V DC ~ 28.8V DC) (-15% ~ +20%), 2.5W, supplied by external power
Operation/storage	Operation: 0°C ~ 55°C (temperature); 5 ~ 95% (humidity); pollution degree 2  Storage: -25°C ~ 70°C (temperature); 5 ~ 95% (humidity)
Vibration/shock immunity	International standards: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27  (TEST Ea)

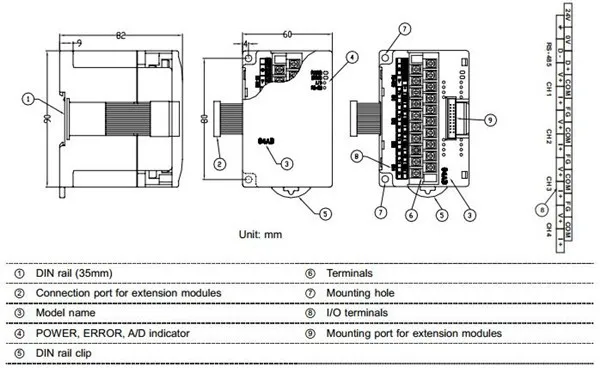

Product Profile & Dimension
