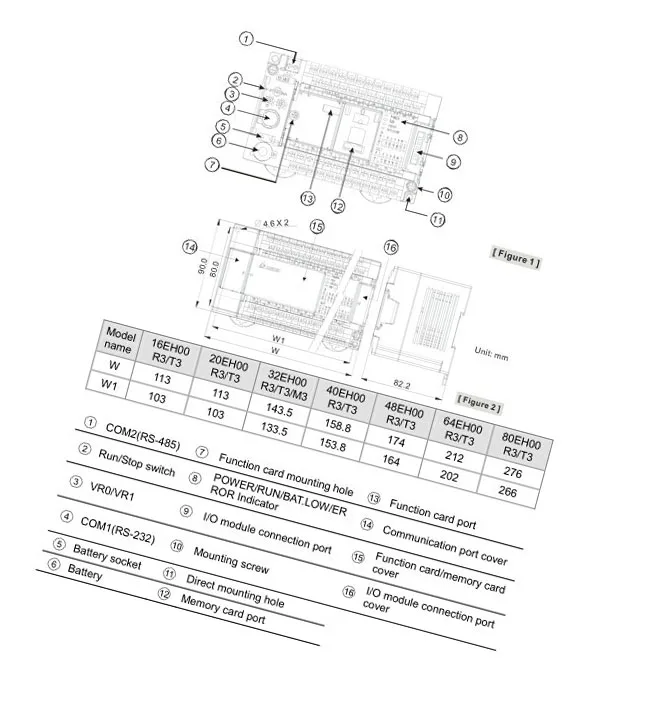

DELTA PLC DVP32EH00R3



The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series.
It provides larger program capacity and data registers for more demanding and complex applications.
Applications
High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.
Specifications
Excellent Motion Control
1)        High-speed ulse output: 4sets of 200kHz pulse output (DVP40/48/64/80EH00T3)
2)        Supports max. 4 hardware 200kHz high-speed counters
3)        Increases many motion control instructions to meet the applications that require high-speed and high-precision
4)        positioning control such as labeling machines, packaging machines and printing machines
5)        Offers linear / arc interpolation motion control
6)        Provides up to 16 external interrupt pointers
Complete Program
1)        Auto backup function to prevent losing programs and data even when the battery runs out
2)        Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
3)        Up to 4-level password protects your source programs and inlectual property
Outstanding Operation Performance
1)        CPU + ASIC dual processors support floating point operations.
2)        The max. execution speed of basic instructions is able to reach 0.24μs.
Flexible Function Extension Modules & Cards
The multiple selections of extension modules and function cards provide analog I/O, temperature measurement,additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.
PLC-Link
C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.
Brand-New High-Speed Extension Modules
The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.


Built-in 4 Hardware High-Speed Counters


Standard
Hardware high-speed counter
1 phase 1
1 phase 1
1 phase 2
2 phase 2
sets
bandwidth
sets
bandwidth
sets
bandwidth
sets
bandwidth
10KHz
200KHz/20KHz
2/2
200KHz/20KHz
2/2
200KHz/20KHz
Electrical Specifications
Model
Items
16EH
00_3
20EH
00_3
32EH
00_3
32EH
00M3
40EH
00_3
48EH
00_3
64EH
00_3
80EH
00_3
Power supply
voltage
100 ~ 240VAC (-15% ~ 10%); 50/60Hz + - 5%
Fuse capacity
2A/250VAC
Power
consumption
50VA
60VA
80VA
DC24V current
output
500mA
Power supply

DC24V output short circuit
Voltage
withstand
1,500VAC (Primary-secondary), 1,500VAC (Primary-PE),
500VAC (Secondary-PE)
Insulation
resistance
> 5M Ohm at 500VDC (between all I/O points and ground)
Noise immunity
ESD: 8KV Air Discharge
EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV, RS: 26MHz ~
1GHz, 10V/m
Grounding
The diameter of grounding wire shall not be less than that of L, N terminal of
the power supply. (When many PLCs are in use at the same time, please
make sure every PLC is properly grounded.)
Operation/
storage
Operation: 0 °C ~55 °C (temperature), 50~95% (humidity), pollution degree 2
Storage: -25 °C ~70 °C (temperature), 5~95% (humidity)
Vibration/shock
resistance
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &
IEC 68-2-27 (TEST Ea)
Weight (g)
500
520
652
644

710
748
836
948
480
500
612
675
688
756
848

Input Point
Spec
Items
Two Differential
inputs (200kHz)
24VDC single common port input
200kHz
20kHz
Normal input
Input wiring type
Independent
wiring
Change wiring from S/S to SINK or SOURCE
Input indicator
LED display; light on = ON, light off = OFF
Input voltage (+ - 10%)
5~24VDC
24VDC
Input point configuration
#1
#2
#3
#4
#5
Input impedance
4.7K Ohm
3.3K Ohm
3.3K Ohm
4.7K Ohm
4.7K Ohm
Active Level
OffàOn
> 1mA (5V)
> 2mA (15V)
OnàOff
< 0.4mA (2V)
< 0.5mA (5V)
Responsetime #5
OffàOn
< 150ns
< 150ns
< 3.5us
< 8us
< 10ms
OnàOff
< 3us
< 3us
< 20us
< 60us
< 20ms


Output Point
           Spec

Items
Two
differential
outputs
Single common port
transistor output
Single common port
relay output
Low speed
High speed
Normal
output
Max. frequency
200kHz
10kHz
200kHz
Load ON/OFF control
Minimum load
2mA/DC power
Working voltage
5VDC
5 ~ 30VDC

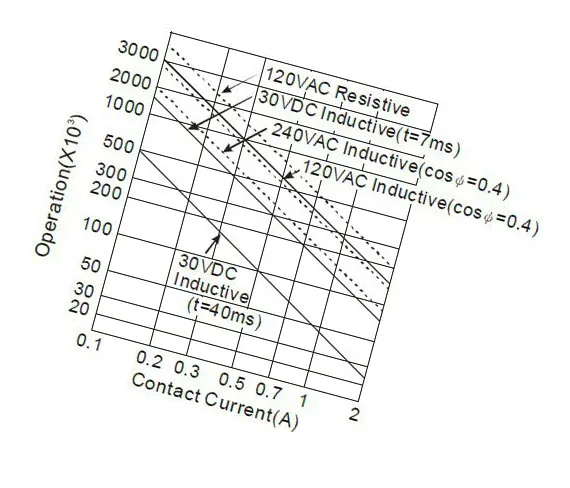

< 250VAC, 30VDC
Insulation
Line Driver
Photo coupler isolation
Magnetic isolation
Maximum
load
Resistive
< 25mA
0.5A/1 point (4A/COM)
2A/1 point (5A/COM)
Inductive
12W (24VDC)
#1
Lamp
2W(24VDC)
20WDC/100WAC
Max. output response
time
0.2us
0.2us
OffàOn: 20us
OnàOff: 30us
10ms



aeProduct.getSubject()


Profil produk & Dimensi

aeProduct.getSubject()

DELTA INVERTER VFD007M21A






Manufacturer: DELTA
VFD007M21A
Series Name : VFD
Applicable motor capacity : 1 HP(0.7kW)
M Series
Input Voltage: Single phase 230V
Version Type : A
General Sensorless Vector Control Micro Drives
Voltage Class :230V Class
VFD007M21A
Model Number VFD-XXXM: 007
Max. Applicable Motor Output (kW): 0.75
Max. Applicable Motor Output (hp): 1.0
Output Rating:-
Rated Output Capacity (kVA):1.9
Rated Output Current (A): 5.0
Maximum Output Voltage (V): 3-phase Proportional to Input Voltage
Output Frequency (Hz): 0.1~400 Hz
Carrier Frequency (kHz): 1-15
Input Rating
Rated Input Current: Single/3-phase , 11.5/7.6
Input Current for 1-phase Models when Using 3-phase Power: 6.3
Rated Voltage, Frequency: Single/3-phase 200-240 VAC, 50/60Hz
Voltage Tolerance: ± 10% (180~264 VAC)
Frequency Tolerance: ± 5% (47~63 Hz)

DELTA PLC DVP24ES200R



Features

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.
Specifications

*MPU points: 16 / 20 / 24 / 32 / 40 / 60
*Program capacity: 16k steps
*Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
*Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
*DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
*Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
*New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
*Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
*Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
*Password protection: Password for subroutine, user ID, restriction on trial times
*Highly efficient instruction efficient instruction execution



Model
Item
16ES2
00_
24ES2
00_
32ES2
00_
40ES2
00_
60ES2
00_
20EX2
00_
32ES2
11T
Power supply
voltage
100 ~ 240VAC (-15% ~ 10%), 50/60Hz + - 5%
24VDC
(-15~+20%)
Connector
European standard removable terminal block (Pin pitch: 5mm)
Operation
ES
200
DVP-ES2 starts to run when the power rises to 95 ~ 100VAC and stops when the power drops to 70VAC. If the power is suddenly cut off, the MPU will continue running for 10ms.
ES
211
DVP-ES2 starts to run when the power rises to 20.4VDC~28.8VDC and stops when the power drops to 17.5VDC. If the power is suddenly cut off, the MPU will continue running for 10ms.
Power supply fuse
2A/250VAC
2.5A / 30VDC,
Polyswitch
Power consumption
30VA

DC24V current output
500mA
/
Power supply protection
DC24V output short circuit protection
/
Voltage withstand
1,500VAC (Primary-secondary), 1,500VAC (Primary-PE),
500VAC (Secondary-PE)
Insulation resistance
> 5M Ohm at 500VDC (between all I/O points and ground)
Noise immunity
ESD: 8KV Air Discharge
EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 1KV
RS: 26MHz ~ 1GHz, 10V/m
Grounding
The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.)
Environment
Operation: 0°C~55°C (temperature), 50~95% (humidity), pollution degree 2
Storage: -25°C~70°C (temperature), 5~95% (humidity)
Agency approvals
UL508
European community EMC Directive 89/336/EEC and Low Voltage Directive
73/23/EEC
Vibration/shock immunity
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &
IEC 68-2-27 (TEST Ea)
Weight (g)
R
377
414
489
554
696
462
/
T
351
387
432
498
614
442
